TM 9-2320-360-34-1
13-9. STEERING STOP BOLT REPLACEMENT/ADJUSTMENT (CONT)
NOTE
·
Go to step (59) if adjustment is
correct.
·
Steering stop bolt should be
turned
clockwise
to
increase
steering radius; counterclockwise
to decrease steering radius.
(55)
Turn steering wheel to straight ahead
position with aid of assistant.
(56)

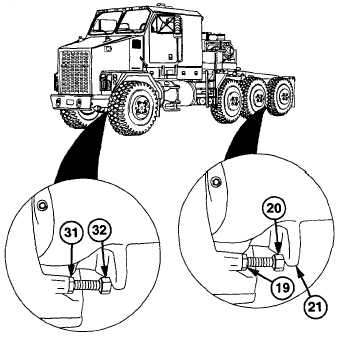

Loosen jam nut (31) and adjust left
steering stop bolt (32).
(57)
Tighten jam nut (31) on left steering stop
bolt (32).
(58)
Repeat steps (51) thru (54) to verify
adjustment.
(59)
Turn left rear steering stop bolt (20) out
until bolt contacts axle housing (21).
(60)
Turn left rear steering stop bolt (20) in one
turn.
(61)
Tighten jam nut (19) on right rear steering
stop bolt (20).
(62)
Turn steering wheel to the straight ahead
position.
(63)
Turn the steering wheel back to full left
position and confirm that there is a
minimum of 1/16 in. (1.59 mm) gap
between steering stop bolt (20) and axle
housing (21).
13-62 Change 3
|
