NOTE
To adjust left steering stops do steps
(51) thru (63).
(51)
Turn steering wheel to full left position with
aid of assistant.
(52)
Drop plumb bob to floor at the intersection
of the scribe lines and marks made in step
(38).
(53)
Draw a line connecting the points made in
step (52).
NOTE
Proper steering radius for axle no. 1
is 36 degrees, +/1.5 degrees.
(54)

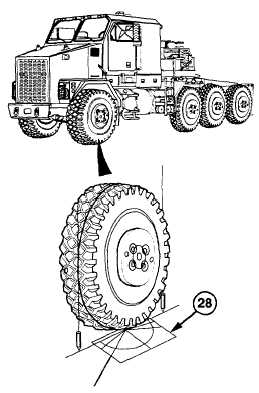

Measure turning radius of left wheel using
template (28).
