TM 9-2320-360-34-1
(38)
Measure and mark front tires, 27-30 in.
(68-76 cm) above ground at front and rear
of each tire on scribe lines made in step
(12).
(39)
Drop plumb bob to floor at the intersection
of the scribe lines and marks made in step
(38).
(40)
Draw a line connecting the points made in
step (39).
NOTE
To adjust right steering stops do
steps (41) thru (50.3).
(41)
Turn steering wheel to full right position
with aid of assistant.
(42)
Drop plumb bob to floor at the intersection
of the scribe lines and marks made in step
(38).
(43)
Draw a line connecting points made in
step (42).
NOTE
Proper steering radius for axle no. 1
is 36 degrees, +/-1.5 degrees.

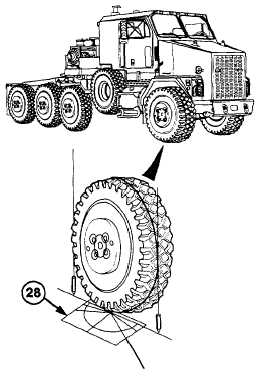

(44)
Measure turning radius of right wheel
using template (28).
Change 3 13-59
|
