TM 9-2320-360-34-1
13-9. STEERING STOP BOLT REPLACEMENT/ADJUSTMENT (CONT)
(29)

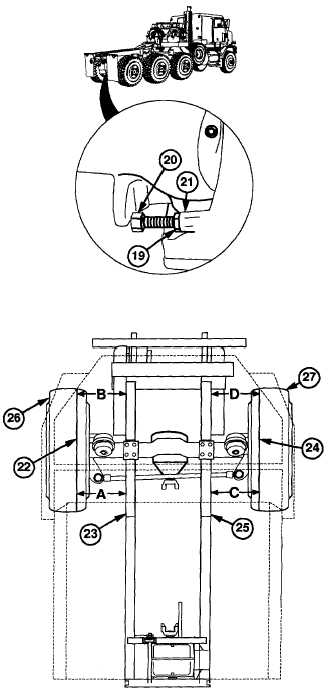

Loosen jam nut (19) on both rear steering
stop bolts (20).
(30)
Turn both rear steering stop bolts (20) into
spindles (21) as far as possible.
CAUTION
Wheels must be positioned straight
ahead
before
continuing
with
procedure. Failure to comply may
cause steering stops to be adjusted
improperly and result in damage to
equipment.
NOTE
Add 3/8 in. (9.53 mm) to front
measurements of axle no. 1 to allow
for thickness of drop frame.
(31) Measure and record distance A
between rear of left scribe line (22)
and left frame (23).
(32) Measure and record distance B
between front of left scribe line (22)
and left frame (23).
(33) Measure and record distance C
between rear of right scribe line (24)
and right frame (25).
(34) Measure and record distance D
between front of right scribe line (24)
and right frame (25).
NOTE
·
Front measurement should be
less
than
or
equal
to
rear
measurement.
·
When measurements found in
steps (35) and (36) are equal,
wheels
are
pointed
straight
ahead.
(35)
Subtract front distance B from rear
distance A and record.
(36)
Subtract front distance D from rear
distance C and record.
NOTE
If measurements are unequal, do step
(37).
(37)
Reposition wheels (26) and (27) and
repeat steps (31) thru (36).
13-58 Change 3
|
