TM 9-2320-360-34-1
WARNING
Floor jack must be positioned on flat
surface. Placing jack on uneven or
soft surface could result in truck
falling, causing serious injury or
death to personnel.
(6)

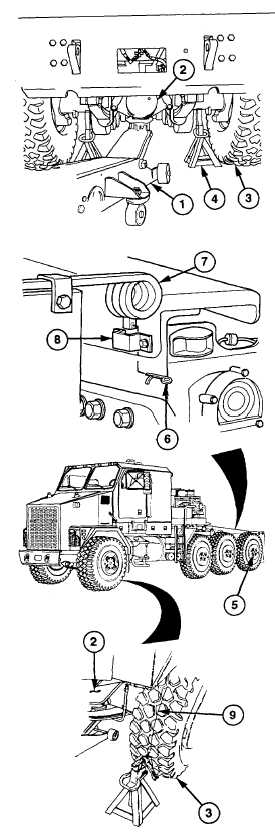

Position floor jack (1) under axle no. 1 (2).
(7)
Raise axle no. 1 (2) until tires (3) are 2-4
in. (5-10 cm) off ground.
WARNING
Jackstands must be positioned on
flat surface, next to spring hangers
and suspension beams. Failure to
comply
may
result
in
wheels
contacting jack stands. Placing
jackstands on uneven or soft surface
could result in truck falling, causing
serious injury or death to personnel.
(8)
Position two jackstands (4) under axle no.
1 (2).
(9)
Lower floor jack (1) and support axle no. 1
(2) on jackstands.
(10)
Repeat steps (6) thru (9) for axle no. 4 (5).
(11)
Deleted.
NOTE
Tires must be marked on lug (high
spot) of tire tread.
(12)
Scribe line around tires (3) on axle no. 1
(2) by securely holding punch on tire tread
(9) while rotating tire (3) by hand.
(13)
thru (28) Deleted.
Change 3 13-57
|
