TM 9-2320-360-34-1
(3)

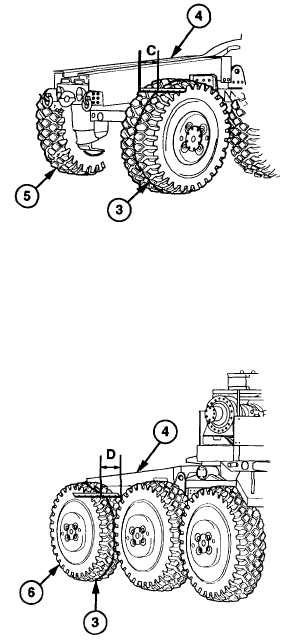

Measure and record distance C between
rear of right scribe line (3) and right frame
(4).
(4)
Measure and record distance D between
front of right scribe line (3) and right frame
(4).
NOTE
·
When measurements found in
steps (5) and (6) are equal, wheel
are pointed straight ahead.
·
Front measurement should be
less
than
or
equal
to
rear
measurement.
(5)
Subtract front distance B from rear
distance A and record.
(6)
Subtract front distance D from rear
distance C and record.
NOTE
If measurements are unequal, do step
(7).
(7)
Reposition wheels (5 and 6) and repeat
steps (1) thru (6).
NOTE
Add
3/8
in.
(9.53
mm)
to
front
measurements of axle no. 1 to allow for
thickness of drop frame.
(8)
Repeat steps (1) thru (7) for axle no. 1.
13-47
|
