TM 9-2320-360-34-1
NOTE
Tires must be marked on lug (high
spot) of tire tread.
(12)

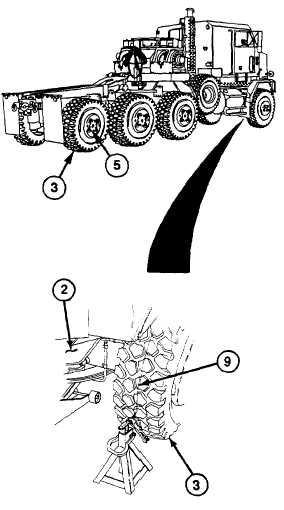

Scribe line around tires (3) on axle no. 1
(2) and axle no. 4 (5) by securely holding
punch on tire tread (9) while rotating tire
(3) by hand.
NOTE
Tires must not be rotated while
performing steps (13) thru (15).
(13)

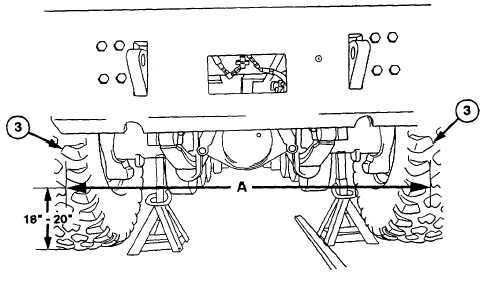

Measure and mark four tires (3) on scribe
lines made in step (12), 18-20 in. (46-51
cm) above ground at front and rear of
each tire (3).
(14)
Measure and record distance A at front
and rear of front tires (3), between scribe
lines at marks made in step (13) with aid
of assistant.
(15)
Measure and record distance A at front
and rear of rear tires (3), between scribe
lines at marks made in step (13) with aid
of assistant.
NOTE
Preferred distance between tires is
1/16 in. (1.6 mm) less across front
than
across
rear.
Acceptable
difference is from 0-1/4 in. (0-6.4 mm)
less across front than across rear.
(16)
Compare
front
and
rear
distances
measured between tires (3) on axle no. 1
(2) and axle no. 4 (5).
13-41
|
