TM 9-2320-360-34-1
13-8. STEERING SYSTEM ADJUSTMENT (CONT)
WARNING
Floor jack must be positioned on flat
surface. Placing jack on uneven or
soft surface could result In truck
falling, causing serious Injury or
death to personnel.
(6)

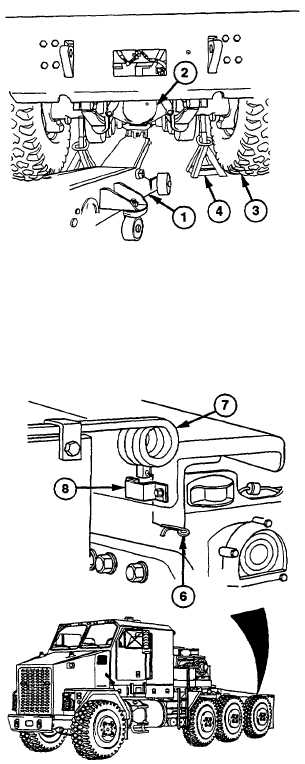

Position floor jack (1) under axle no. 1 (2).
(7)
Raise axle no. 1 (2) until tires (3) are 2-4
in. (5-10 cm) off ground.
WARNING
Jackstands must be positioned on
flat surface, not more than 10 in. (25.4
cm) from wheels. Placing jackstands
on uneven or soft surface could
result
in
truck
falling,
causing
serious Injury or death to personnel.
(8)
Position two jackstands (4) under axle no.
1 (2).
(9)
Lower floor jack (1) and support axle no. 1
(2) on jackstands.
(10)
Repeat steps (6) thru (9) for axle no. 4 (5).
NOTE
Left and right mud flaps are removed
the same way. Left mud flap is
shown.
(11)
Remove cotter pin (6) and mud flap
bracket (7) from bracket (8). Discard
cotter pin.
13-40
|
