13-7.2. AUXILIARY STEERING PUMP MANIFOLD REPLACEMENT (CONT)
e.
Installation
(1)

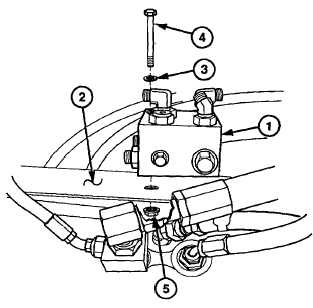

Install auxiliary steering pump manifold (1)
on angle assembly (2) with two washers
(3), screws (4), and new locknuts (5).
(2)

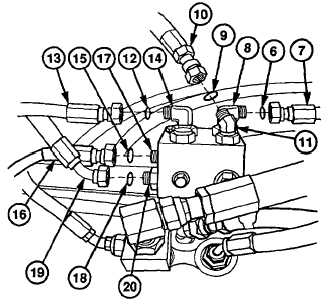

Install new preformed packing (6) and
hose no. 2723 (7) on elbow (8).
(3)
Install new preformed packing (9) and
hose no. 2301 (10) on elbow (11).
(4)
Install new preformed packing (12) and
hose no. 2935 (13) on elbow (14).
(5)
Install new preformed packing (15) and
hose no. 2916 (16) on adapter (17).
(6)
Install new preformed packing (18) and
hose no. 2879 (19) on adapter (20).
f.
Follow-On Maintenance
(1)
Fill steering reservoir (LO 9-2320-360-12).
(2)
Start engine (TM 9-2320-360-10).
(3)
Check auxiliary steering pump manifold
for leaks.
(4)
Shut off engine (TM 9-2320-360-10).
(5)
Install transfer case to no. 1 axle propshaft
(TM 9-2320-360-20).
(6)
Install transfer case to no. 2 axle propshaft
(TM 9-2320-360-20).
