d.

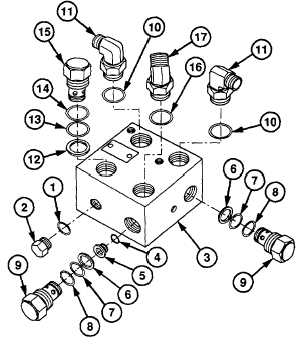

Assembly
(1)
Install new preformed packing (1) and
plug (2) on auxiliary steering pump
manifold (3).
(2)
Install new preformed packing (4) and
orifice plug (5) on auxiliary steering pump
manifold (3).
(3)
Install two new backup washers (6), new
preformed
packings
(7),
and
new
preformed packings (8) on plugs (9).
(4)
Install two plugs (9) on auxiliary steering
pump manifold (3).
(5)
Install two new preformed packings (10)
and elbows (11) on auxiliary steering
pump manifold (3).
(6)
Install new backup washer (12), new
preformed
packing
(13),
and
new
preformed packing (14) on plug (15).
(7)
Install plug (15) on auxiliary steering pump
manifold (3).
(8)
Install new preformed packing (16) and
elbow (17) on auxiliary steering pump
manifold (3).
(9)
Install new preformed packing (18) and
plug (19) on auxiliary steering pump
manifold (3).
(10)
Install new preformed packing (20) and
adapter (21) on auxiliary steering pump
manifold (3).
(11)
Install new preformed packing (22) and
adapter (23) on auxiliary steering pump
manifold (3).

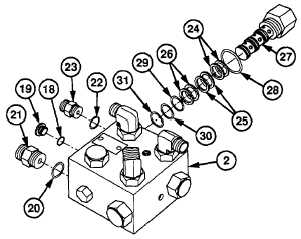

(12)
Install six new backup washers (24 thru
26) on valve (27).
(13)
Install four new preformed packings (28
thru 31) on valve (27).
(14)
Install valve (27) on auxiliary steering
pump manifold (3).
