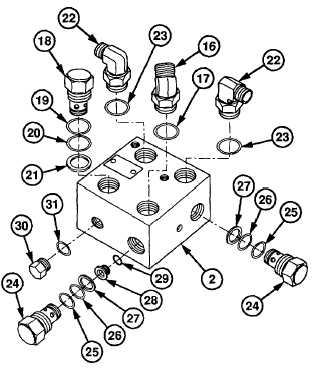

13-7.2. AUXILIARY STEERING PUMP MANIFOLD REPLACEMENT (CONT)
(7)
Remove
elbow
(16)
and
preformed
packing (17) from auxiliary steering pump
manifold (2). Discard preformed packing.
(8)
Remove plug (18) from auxiliary steering
pump manifold (2).
(9)
Remove
preformed
packing
(19),
preformed packing (20), and backup
washer (21) from plug (18). Discard
preformed packings and backup washer.
(10)
Remove two elbows (22) and preformed
packings (23) from auxiliary steering pump
manifold (2). Discard preformed packings.
(11)
Remove two plugs (24) from auxiliary
steering pump manifold (2).
(12)
Remove two preformed packings (25), two
preformed packings (26), two backup
washers (27) from two plugs (24). Discard
preformed packings and backup washers.
(13)
Remove orifice plug (28) and preformed
packing (29) from auxiliary steering pump
manifold (2).
(14)
Remove plug (30) and preformed packing
(31) from auxiliary steering pump manifold
(2). Discard preformed packing.
c.
Cleaning/Inspection
WARNING
Dry cleaning solvent P-D-680 Is toxic and flammable. Wear protective goggles and
gloves and use solvent only In a well-ventilated area. Avoid contact with skin,
eyes, and clothes, and don't breathe vapors. Do not use near open flame or
excessive heat. The flash point Is 100-138° F (38-50° C). If you become dizzy while
using cleaning solvent, get fresh air immediately and get medical aid. If solvent
contacts eyes, wash eyes with water and get medical aid Immediately.
(1)
Clean all parts in dry cleaning solvent.
WARNING
Compressed air for cleaning
purposes will not exceed 30 psi (207
kPa). Use only with effective chip
guarding and personal protective
equipment (goggles/shield, gloves,
etc.).
(2)
Dry parts with compressed air.
(3)
Check threads in manifold. Replace
manifold if any threads are damaged.
(4)
Check ball plug (1). If plug is leaking or
missing, replace manifold.
13-38.6
|
