TM 9-2320-360-34-1
(7)

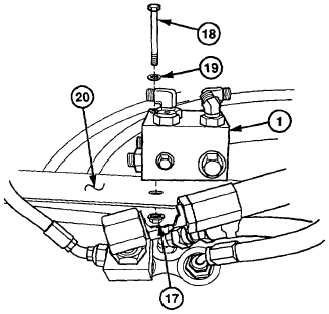

Remove two locknuts (17), screws (18),
washers (19), and auxiliary steering pump
manifold (1) from angle assembly (20).
Discard locknuts.
b.
Disassembly
NOTE
Mark locations of valves, plugs,
fittings, and elbows before removal.

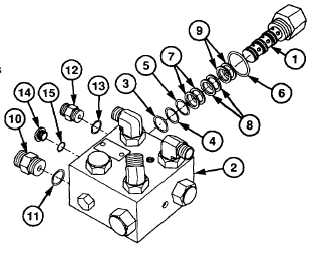

(1)
Remove valve (1) from auxiliary steering
pump manifold (2).
(2)
Remove four preformed packings (3 thru
6) from valve (1). Discard preformed
packings.
(3)
Remove six backup washers (7 thru 9)
from valve (1). Discard backup washers.
(4)
Remove adapter (10) and preformed
packing (11) from auxiliary steering pump
manifold (2). Discard preformed packing.
(5)
Remove adapter (12) and preformed
packing (13) from auxiliary steering pump
manifold (2). Discard preformed packing.
(6)
Remove plug (14) and preformed packing
(15) from auxiliary steering pump manifold
(2). Discard preformed packing.
13-38.5
|
