TM 9-2320-360-34-1
13-7.2. AUXILIARY STEERING PUMP MANIFOLD REPAIR
This task covers:
a. Removal
d.
Assembly
b. Disassembly
e.
Installation
c. Cleaning/Inspection
f.
Follow-On Maintenance
INITIAL SETUP
Equipment Conditions
Materials/Parts
Steering reservoir drained
Tags, Identification (Item 56, Appendix B)
(LO 9-2320-360-12).
Locknuts (2) (Item 96, Appendix F)
Transfer case to no. 1 axle propshaft
Packings, Preformed (4) (Item 176, Appendix F)
removed (TM 9-2320-360-20).
Packings, Preformed (3) (Item 160.1,
Transfer case to no. 2 axle propshaft
Appendix F)
removed (TM 9-2320-360-20).
Packings, Preformed (3) (Item 182.1,
Appendix F)
Tools and Special Tools
Packing, Preformed (Item 158, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Packing, Preformed (Item 194.1, Appendix F)
Compressor Unit, Air (Item 24, Appendix E)
Seal Kits (3) (Item 295.1, Appendix F)
Goggles, Industrial (Item 57, Appendix E)
Seal Kit (Item 295.2, Appendix F)
Pan, Oil Drain (Item 102, Appendix E)
Vise, Machinist's (Item 207, Appendix E)
CAUTION
Plug removed lines and cap fittings
to prevent debris from entering
system. Failure to do so may cause
failure of system.
NOTE
Tag and mark hoses before removal.

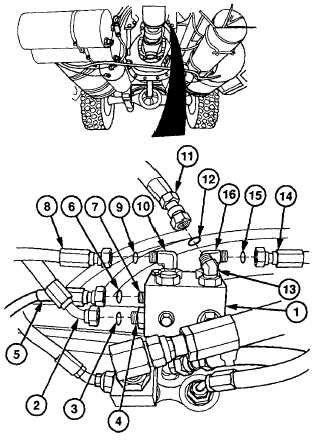

a.
Removal
(1)
Place suitable drain pan under auxiliary
steering pump manifold (1).
(2)
Remove hose no. 2879 (2) and preformed
packing (3) from adapter (4). Discard
preformed packing.
(3)
Remove hose no. 2916 (5) and preformed
packing (6) from adapter (7). Discard
preformed packing.
(4)
Remove hose no. 2935 (8) and preformed
packing (9) from elbow (10). Discard
preformed packing.
(5)
Remove
hose
no.
2301
(11)
and
preformed packing (12) from elbow (13).
Discard preformed packing.
(6)
Remove
hose
no.
2723
(14)
and
preformed packing (15) from elbow (16).
Discard preformed packing.
13-38.4
|
