WARNING
Adhesive-sealant can bum easily, can
give off harmful vapors, and is
harmful to skin and clothing. To
avoid Injury or death, keep away from
open fire and use In well-ventilated
area. If adhesive sealant gets on skin
or clothing, wash Immediately with
soap and water.
(6)
Coat threads of two screws (12) with
adhesive-sealant (Item 6, Appendix B).
(7)

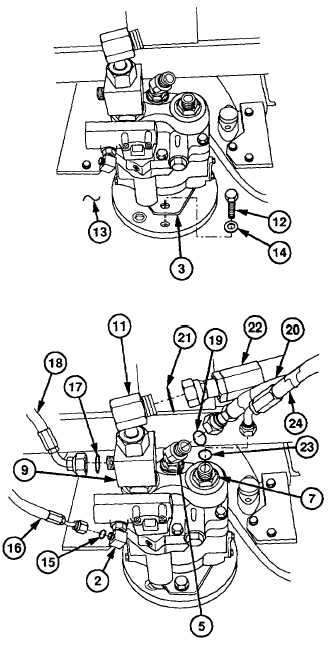

Coat face of auxiliary steering pump (3)
with adhesive-sealant (Item 3, Appendix
B).
(8)
Install auxiliary steering pump (3) on
transfer case (13) with two washers (14)
and screws (12).
(9)
Install new preformed packing (15) and
hose no. 2916 (16) on elbow (2).
(10)
Install new preformed packing (17) and
hose no. 2935 (18) on tee (9).
(11)
Install new preformed packing (19) and
hose no. 2918 (20) on elbow (5).
(12)
Install new preformed packing (21) and
hose no. 2906 (22) on elbow (11).
(13)
Install new preformed packing (23) and
hose no. 2723 (24) on adapter (7).
c.
Follow-On Maintenance
(1)
Fill steering reservoir (LO 9-2320-360-12).
(2)
Start engine (TM 9-2320-360-10).
(3)
Check auxiliary steering pump for leaks.
(4)
Shut off engine (TM 9-2320-360-10).
(5)
Install transfer case to no. 1 axle propshaft
(TM 9-2320-360-20).
(6)
Install transfer case to no. 2 axle propshaft
(TM 9-2320-360-20).
