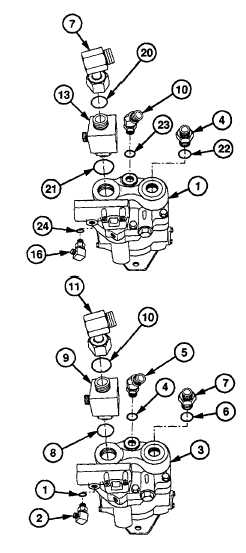

13-7.1. AUXILIARY STEERING PUMP REPLACEMENT (CONT)
(7)
Remove two screws (17), washers (18),
and auxiliary steering pump (1) from
transfer case (19).
(8)
Remove elbow (7) and preformed packing
(20) from tee (13). Discard preformed
packing.
(9)
Remove tee (13) and preformed packing
(21) from auxiliary steering pump (1).
Discard preformed packing.
(10)
Remove
adapter
(4)
and
preformed
packing (22) from auxiliary steering pump
(1). Discard preformed packing.
(11)
Remove
elbow
(10)
and
preformed
packing (23) from auxiliary steering pump
(1). Discard preformed packing.
(12)
Remove
elbow
(16)
and
preformed
packing (24) from auxiliary steering pump
(1). Discard preformed packing.
b.
Installation
(1)
Install new preformed packing (1) and
elbow (2) on auxiliary steering pump (3).
(2)
Install new preformed packing (4) and
elbow (5) on auxiliary steering pump (3).
(3)
Install new preformed packing (6) and
adapter (7) on auxiliary steering pump (3).
(4)
Install new preformed packing (8) and tee
(9) on auxiliary steering pump (3).
(5)
Install new preformed packing (10) and
elbow (11) on tee (9).
