TM 9-2320-360-34-1
13-7.1. AUXILIARY STEERING PUMP REPLACEMENT
This task covers:
a. Removal
c.
Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Materials/Parts
Steering reservoir drained
Adhesive-Sealant (Item 3, Appendix B)
(LO 9-2320-360-12).
Adhesive-Sealant (Item 6, Appendix B)
Transfer case to no. 1 axle propshaft
Tags, Identification (Item 56, Appendix B)
removed (TM 9-2320-360-20).
Packings, Preformed (3) (Item 160.1,
Transfer case to no. 2 axle propshaft
Appendix F)
removed (TM 9-2320-360-20).
Packings, Preformed (2) (Item 158, Appendix F)
Packing, Preformed (Item 160.1, Appendix F)
Tools and Special Tools
Packing, Preformed (Item 177, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Packing, Preformed (Item 179, Appendix F)
Pan, Oil Drain (Item 102, Appendix E)
Packing, Preformed (Item 181.1, Appendix F)
Wrench, Adjustable, Automobile (Item 212.1,
Packing, Preformed (Item 182.1, Appendix F)
Appendix E)
Wrench, Combination, 1-3/8 In. (Item 213,
Appendix E)
CAUTION
Plug removed lines and cap fittings
to prevent debris from entering
system. Failure to do so may cause
failure of system.
NOTE
Tag and mark hoses before removal.
a.
Removal

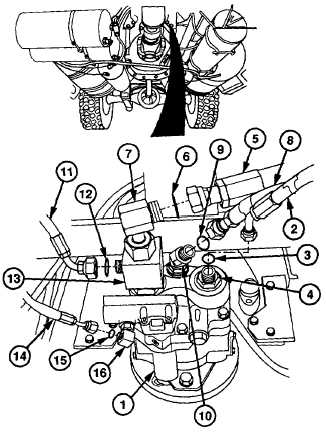

(1)
Place suitable drain pan under auxiliary
steering pump (1).
(2)
Remove hose no. 2723 (2) and preformed
packing (3) from adapter (4). Discard
preformed packing.
(3)
Remove hose no. 2906 (5) and preformed
packing (6) from elbow (7). Discard
preformed packing.
(4)
Remove hose no. 2918 (8) and preformed
packing (9) from elbow (10). Discard
preformed packing.
(5)
Remove
hose
no.
2935
(11)
and
preformed packing (12) from tee (13).
Discard preformed packing.
(6)
Remove
hose
no.
2916
(14)
and
preformed packing (15) from elbow (16).
Discard preformed packing.
13-38.1
|
