TM 9-2320-360-34-1
13-7. STEERING PUMP REPLACEMENT (CONT)
(26)

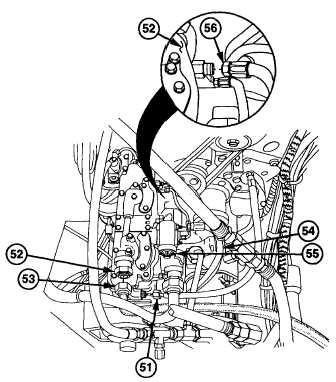

Install hose no. 2628 (51) on air
compressor (52).
(27)
Install hose no. 2001 (53) on air
compressor (52).
(28)
Install hose no. 2159 (54) on air governor
(55).
(29)
Install hose no. 2096 (56) on air
compressor (52).
(30)

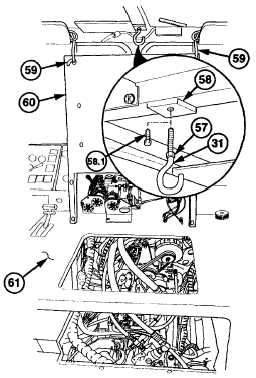

Loosen jam nut (57) and remove eye bolt
(31) from cab ceiling (58).
(30.1)
Install screw (58.1) in cab ceiling (58).
(31)
Install eye bolt (31) in cab ceiling (58) and
tighten jam nut (57).
(32)
Remove plastic cable ties (59). Lower
ECB (60) onto doghouse (61).
13-36 Change 2
|
