TM 9-2320-360-34-1
(20)

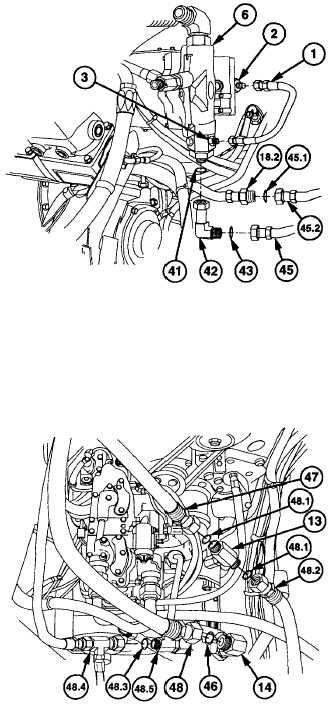

Install hose (1) on fitting (3).
(21)
Install hose (1) on elbow (2).
(22)
Install new preformed packing (41) and
elbow (42) on steering pump (6).
(23)
Install new preformed packing (43) and
hose no. 2274 (45) on elbow (42).
(23.1)
Install new preformed packing (45.1) and
hose no. 2879 (45.2) on hose no. 2879
(18.2).
(24)
Install new preformed packing (46) and
hose no. 2302 (48) on elbow (14).
(25)
Install two new preformed packings (48.1),
hose no. 2778 (47), and hose no. 2906
(48.2) on tee (13).
(25.1)
Install new preformed packing (48.3) and
tee (48.4) on tee (48.5).
Change 1 13-35
|
