TM 9-2320-360-34-1
13-7. STEERING PUMP REPLACEMENT (CONT)
WARNING
Sealing compound can burn easily,
can give off harmful vapors, and are
harmful to skin and clothing. To
avoid injury or death, keep away from
open fire and use In well-ventilated
area. If sealing compound gets on
skin or clothing, wash immediately
with soap and water.
NOTE
Rubber seal on gasket faces away
from engine.
(12.1)
Apply sealing compound to engine side of
new gasket (32).
(13)

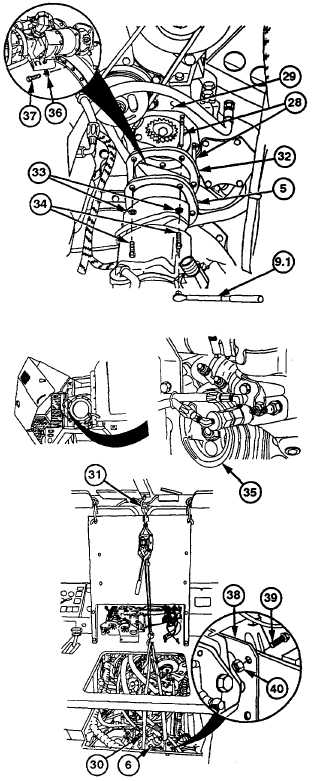

Position gasket (32) and adapter housing
(5) on aligning guide screw studs (28) with
aid of assistant.
CAUTION
Steering pump drive hub must be
mated with engine drive plate. If hub
does not align, rotate crankshaft by
turning nut in center of pulley on
front of left camshaft clockwise.
Failure to comply may result in
damage to drive couplings.
(14)
Install gasket (32) and adapter housing (5)
on engine (29) with two new lockwashers
(33) and screws (34) while assistant uses
camshaft pulley (35) to bar over engine.
(15)
Remove two guide screws (28) from
engine (29).
(16)
Remove two lifting straps (30) and lifting
device from steering pump (6) and eye
bolt (31).
(17)
Install
two
new
lockwashers
(33),
remaining screws (34), new lockwasher
(36), and screw (37) through adapter
housing (5) into engine (29). Do not
tighten.
(18)
Secure steering pump bracket (38) with
two screws (39) and nuts (40).
(19)
Tighten four screws (34) to 80 Ib-ft (108
Nm) and screw (37) to 55 lb-ft (75 Nm)
using click type torque wrench (911).
13-34 Change 1
|
