TM 9-2320-360-34-1
(6)

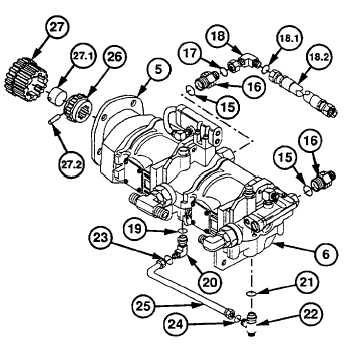

Install
two
new
preformed
packings (15), adapters (16), new
preformed
packing
(17),
and
elbow (18) on steering pump (6).
(6.1)
Install new preformed packing
(18.1) and hose no. 2879 (18.2)
on elbow (18).
(7)
Install new preformed packing
(19) and elbow (20) on steering
pump (6).
(8)
Install new preformed packing
(21) and tee (22) on steering
pump (6).
(9)
Install
two
new
preformed
packings (23 and 24) and tube
(25) on elbow (20) and tee (22).
(9.1)
Align holes on retainer (27.1) and
drive coupling (26) and install
spring pin (27.2).
CAUTION
Large drive coupling must remain
over small drive coupling at all times.
Failure to comply may result in pin
separating from small drive coupling.
(10)
Install drive couplings (26 and 27)
in adapter housing (5).
(11)

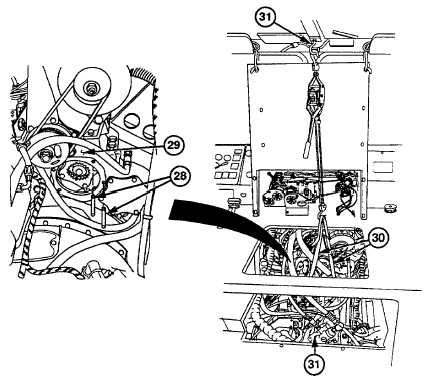

Install two guide screws (28) in
right side holes of engine (29).
NOTE
Rear lifting strap supports steering
pump. Front lifting strap guides
steering pump.
(12)
Install two lifting straps (30) and
suitable lifting device on steering
pump (6) and eye bolt (31).
13-33
|
