13-7. STEERING PUMP REPLACEMENT (CONT)
c.
Installation
NOTE
If new steering pump is being
installed, begin with step (1). If old
steering pump is being reinstalled,
begin with step (3).
(1)
Remove hose (1) from elbow (2).
(2)
Remove hose (1) from fitting (3).
WARNING
Sealing compound can burn easily,
can give off harmful vapors, and is
harmful to skin and clothing. To
avoid injury or death, keep away from
open fire and use in well ventilated
area. If sealing compound gets on
skin or clothing, wash immediately
with soap and water.
NOTE
Rubber seal on gasket faces adapter
housing.
(3)
Apply sealing compound to steering pump
mounting surface (4).
(4)

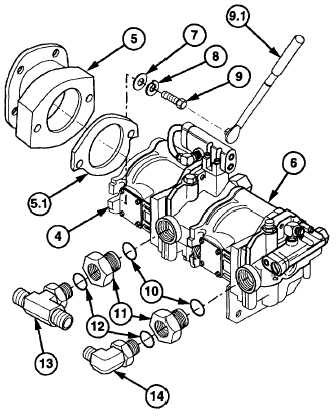

Install new gasket (5.1) and adapter
housing (5) on steering pump (6) with two
washers (7), new lockwashers (8), and
screws (9). Torque to 45 lb-ft (61 Nm)
using click-type torque wrench (9.1).
(5)
Install two new preformed packings (10),
adapters (11), new preformed packings
(12), tee (13), and elbow (14) on steering
pump (6).
