13-7. STEERING PUMP REPLACEMENT (CONT)
NOTE
Drive couplings may come out with
adapter housing or remain in engine
during pump removal.

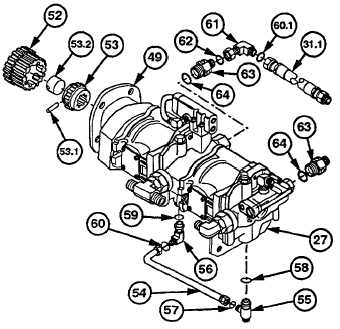

(25)
Remove drive couplings (52 and 53) from
inside adapter housing (49).
(25.1)
Remove spring pin (53.1) and retainer
(53.2) from drive coupling (53).
(26)
Remove tube (54) from tee (55) and elbow
(56).
(27)
Remove tee (55) and two preformed
packings (57 and 58) from steering pump
(27). Discard preformed packings.
(28)
Remove elbow (56) and two preformed
packings (59 and 60) from steering pump
(27). Discard preformed packings.
(28.1)
Remove hose no. 2879 (31.1) and
preformed packing (60.1) from elbow (61).
Discard preformed packing.
(29)
Remove elbow (61), preformed packing
(62), two adapters (63), and preformed
packings (64) from steering pump (27).
Discard preformed packings.
(30)
Remove tee (64.1), elbow (65), two
preformed packings (66), adapters (67),
and
preformed
packings
(68)
from
steering pump (27). Discard preformed
packings.

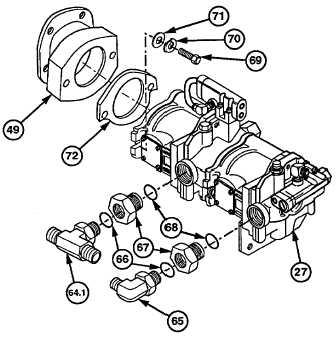

(31)
Remove two screws (69), lockwashers
(70), washers (71), gasket (72), and
adapter housing (49) from steering pump
(27). Discard lockwashers and gasket.
