CAUTION
Do not remove the two screws that
secure bracket to steering pump.
Failure to comply may result in
damage to equipment.

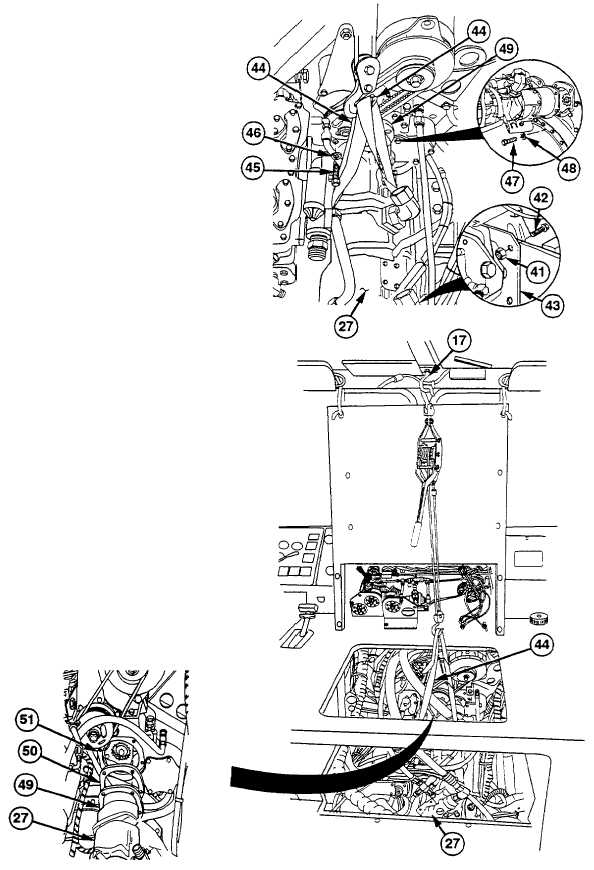

(20)
Remove two nuts (41) and screws
(42) from steering pump bracket
(43).
NOTE
Rear lifting strap supports steering
pump. Front lifting strap guides
steering pump.
(21)
Attach two lifting straps (44) and
suitable lifting device to steering
pump (27) and eye bolt (17).
(22)
Remove
four
screws
(45),
lockwashers (46), screw (47), and
lockwasher
(48)
from
adapter
housing
(49)
while
assistant
supports steering pump (27) with
lifting
device.
Discard
lockwashers.
WARNING
Steering pump weighs approximately
112 lb (51 kg). If dropped, pump may
cause serious injury.
NOTE
Gently strike steering pump with soft-
faced mallet to unseat mounting
flange from engine.
(23)
Remove
steering
pump
(27),
adapter housing (49), and gasket
(50) from engine (51) with aid of
assistant. Discard gasket.
(24)
Remove two lifting straps (44) and
suitable
lifting
device
from
steering pump (27) and eye bolt
(17).
