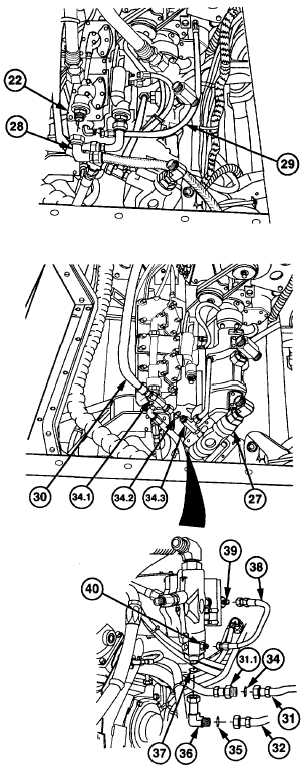

13-7. STEERING PUMP REPLACEMENT (CONT)
(13)
Disconnect hose no. 2001 (28) from air
compressor (22).
(14)
Disconnect hose no. 2628 (29) from air
compressor (22).
(15)
Place suitable drain pan under hoses (30
thru (32) to catch draining steering fluid.
(16)
Disconnect hose no. 2879 (31) and
remove preformed packing (34) from hose
no. 2879 (31.1). Discard preformed
packing.
(16.1)
Remove tee (34.1) and preformed packing
(34.2) from tee (34.3). Discard preformed
packing.
(16.2)
Remove hose no. 2274 (32) and
preformed packing (35) from elbow (36).
Discard preformed packing.
(17)
Remove
elbow
(36)
and
preformed
packing (37) from steering pump (27).
Discard preformed packing.
(18)
Remove hose (38) from elbow (39).
(19)
Remove hose (38) from fitting (40).
