TM 9-2320-360-34-1
(6)

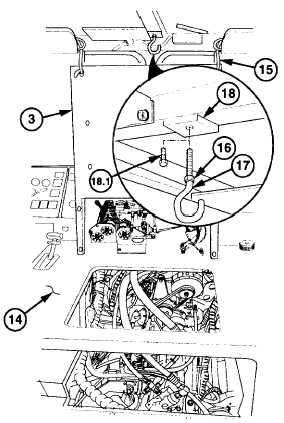

Tilt rear of ECB (3) upward and position
on doghouse (14). Secure with plastic
cable ties (15).
(7)
Loosen jam nut (16) and remove rear seat
eye bolt (17) from cab ceiling (18).
(7.1)
Remove screw (18.1) from cab ceiling
(18).
(8)
Install eye bolt (17) in threaded hole in
center of cab ceiling (18) and tighten jam
nut (16).
CAUTION
Plug removed lines and cap fittings
to prevent debris from entering
systems. Failure to do so may cause
failure of systems.
NOTE
Tag and mark six hoses before
disconnection.

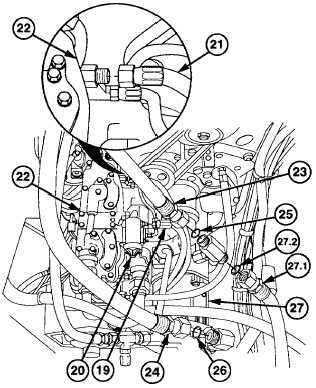

(9)
Disconnect hose no. 2159 (19) from air
governor (20).
(10)
Disconnect hose no. 2096 (21) from air
compressor (22).
(11)
Place suitable drain pan under hoses (23
and 24).
(12)
Remove hose no. 2778 (23) and hose no.
23 (24) and preformed packings (25 and
26) from steering pump (27). Discard
preformed packings.
(12.1)
Remove hose no. 2906 (27.1) and
preformed packing (27.2) from steering
pump (27). Discard preformed packing.
Change 2 13-27
|
