TM 9-2320-360-34-1
13-7. STEERING PUMP REPLACEMENT (CONT)
NOTE
Tag and mark harness connectors
before disconnection.
(2)

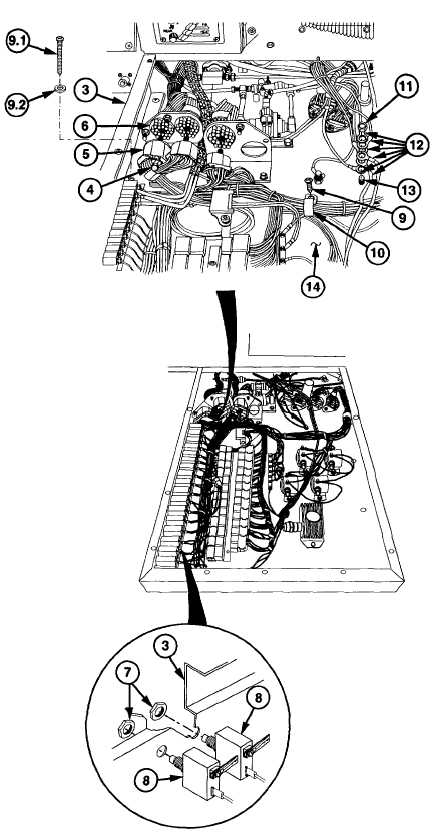

Loosen three screws (4) and
remove harness connectors (5)
from sockets (6).
NOTE
Tag and mark circuit breakers before
removal from ECB.
(3)
Remove two nuts (7) and DDEC
circuit breakers (8) from ECB (3).
NOTE
The four 2 in. (5 cm) screws are used
to retain the top doghouse insulation.
Mark locations of these four screws
for proper assembly.
(4)
Remove eight screws (9), four
screws (9.1), washers (9.2) and
two clips (10) from ECB (3).
(5)
Remove locknut (11) and six
ground wires no. 1435 (12) from
screw (13) in doghouse (14).
Discard locknut.
13-26 Change 2
|
