13-7. STEERING PUMP REPLACEMENT
This task covers:
a. Removal
c. Installation
b. Cleaning/Inspection
d. Follow-On Maintenance
INITIAL SETUP
Equipment Conditions
Tools and Special Tools (Cont)
Cooling system drained (TM 9-2320-360-20).
Wrench, Torque, Click-Type, 15-1 00 Lb-Ft,
Steering reservoir drained
(Item 238, Appendix E)
(LO 9-2320-360-12).
Wrench, Torque, Click-Type, 30-250 Lb-Ft
Batteries disconnected (TM 9-2320-360-20).
(Item 239, Appendix E)
Top doghouse insulation removed
(TM 9-2320-360-20).
Materials/Parts
Front engine access panel removed
Adhesive-Sealant (Item 6, Appendix B)
(TM 9-2320-360-20).
Compound, Sealing (Item 22.1, Appendix B)
Lower engine access panel removed
Grease (Item 34, Appendix B)
(TM 9-2320-360-20).
Solvent, Dry Cleaning (Item 54, Appendix B)
Tags, Identification (Item 56, Appendix B)
Tools and Special Tools
Ties, Plastic, Cable (Item 60, Appendix B)
Tool Kit, Genl Mech (Item 202, Appendix E)
Gasket (Item 30, Appendix F)
Hoist, Hand Operated (Item 69, Appendix E)
Gasket (Item 47.1, Appendix F)
Pan, Oil Drain (Item 102, Appendix E)
Locknut (Item 96, Appendix F)
Screws, Guide (2) (Figure C-4, Appendix C)
Lockwashers (6) (Item 122, Appendix F)
Sling, Endless Strap (Item 161, Appendix E)
Lockwasher (Item 121, Appendix F)
Wrench, Combination, 1-1/2 In. (Item 214,
Packings, Preformed (4) (Item 181, Appendix F)
Appendix E)
Packings, Preformed (4) (Item 158, Appendix F)
Wrench, Crows Foot, 3/4 In., 3/8 In. Drive
Packings, Preformed (2) (Item 160, Appendix F)
(Item 219, Appendix E)
Packings, Preformed (2) (Item 161, Appendix F)
Wrench, Open-End, 1-7/8 In. and 1-11/16 In.
Packings, Preformed (2) (Item 176, Appendix F)
(Item 225, Appendix E)
Packings, Preformed (2) (Item 178, Appendix F)
Wrench Set, Socket, 3/4 In. Drive (Item 231,
Packings, Preformed (2) (Item 186, Appendix F)
Appendix E)
Packing, Preformed (Item 177, Appendix F)
Wrench Set, Socket, 3/8 In. Drive (Item 232,
Appendix E)
Personnel Required
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Two
Appendix E)
a.
Removal
(1)

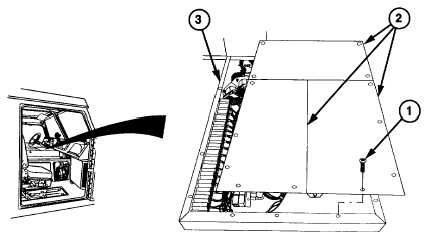

Remove 19 screws (1) and 3
covers (2) from electronic control
box (ECB) (3).
Change 2 13-25
|
