TM 9-2320-360-34-1
13-6. REAR STEERING GEAR REPLACEMENT (CONT)
(28)

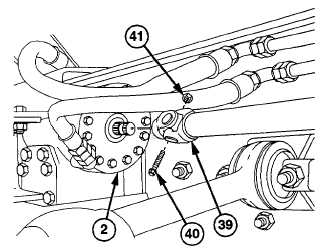

Install yoke (39) on steering gear (2) with
screw (40) and new locknut (41). Torque
to 35-40 Ib-ft (47-54 Nm).
(29)

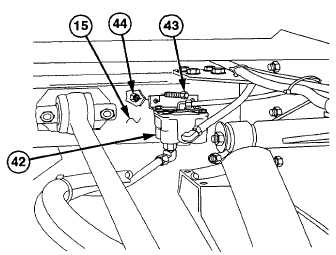

Install rear service brake relay valve (42)
on crossmember (15) with two screws (43)
and new locknuts (44).
c.
Follow-On Maintenance
(1)
Fill
power
steering
reservoir
(LO 9-2320-360-12).
(2)
Start engine (TM 9-2320-360-10).
(3)
Build up air pressure to 120-125 psi (827-
862 kPa).
(4)
Check air hose connections for leaks.
(5)
Check steering hose connections for
leaks.
(6)
Shut off engine (TM 9-2320-360-10).
(7)
Install longitudinal torque rod (axle no. 4)
(para 15-4).
(8)
Install left fifth wheel ramp/extension (TM
9-2320-360-20).
(9)
Adjust steering system (para 13-8).
13-24
|
