TM 9-2320-360-34-1

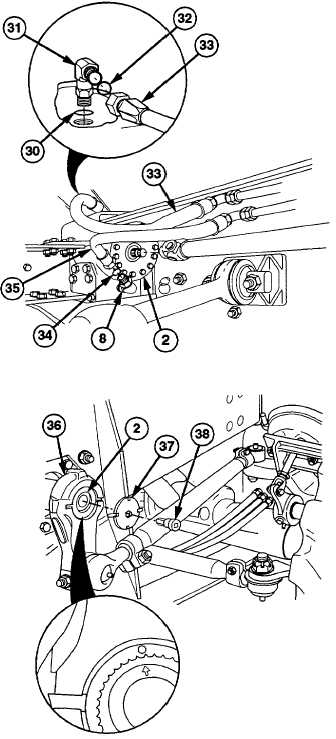

(19) Install new preformed packing (30) and
elbow (31) on steering gear (2).
(20) Install new preformed packing (32) and
hose no. 2275 (33) on elbow (31).
(21) Install new preformed packing (34) and
hose no. 2276 (35) on adapter (8).
(22) Coat inside surfaces of pitman arm (36)
with antiseize compound.
NOTE
It may be necessary to turn steering
gear input shaft to align timing marks
on steering gear output shaft and
pitman arm.
(23) Align timing marks on steering gear (2)
and pitman arm (36).
(24) Position pitman arm (36) on steering gear
(2).
(25) Coat new retainer (37) with antiseize
compound.
(26) Install retainer (37) on pitman arm (36)
using 3/4 in. sockethead screw socket
(38).
(27) Tighten retainer (37) to 450 Ib-ft (610
Nm).
13-23
|
