TM 9-2320-360-34-1
13-6. REAR STEERING GEAR REPLACEMENT (CONT)
(14)

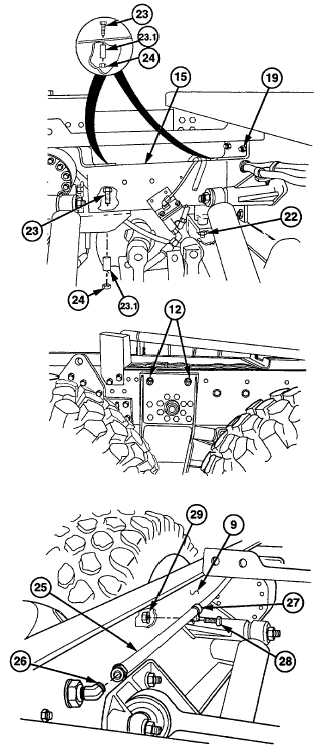

Install 12 screws (23), sleeves (23.1), and
new locknuts (24) on crossmember (15)
with aid of assistant. Torque to 380 Ib-ft
(515 Nm).
(15)
Tighten four locknuts (22) to 550 Ib-ft (515
Nm).
(16)
Tighten
two
locknuts
(12)
and
two
locknuts (19) to 220 Ib-ft (298 Nm).
(17)
Install hose no. 2047 (25) on elbow (26).
(18)
Install hose no. 2047 (25) and clip (27) on
frame (9) with screw (28) and new locknut
(29).
13-22 Change 1
|
