13-6. REAR STEERING GEAR REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Materials/Parts
Steering reservoir drained
Compound, Antiseize (Item 18, Appendix B)
(LO 9-2320-360-12).
Compound, Sealing, Pipe Thread
Air system drained (TM 9-2320-360-10).
(Item 28, Appendix B)
Left fifth wheel ramp removed
Rags (Item 51, Appendix B)
(TM 9-2320-360-20).
Locknuts (2) (Item 87, Appendix F)
Longitudinal torque rod removed (axle no. 4)
Locknuts (18) (Item 88, Appendix F)
(para 15-4).
Locknuts (2) (Item 92, Appendix F)
Locknut (Item 80, Appendix F)
Tools and Special Tools
Lockwashers (8) (Item 106, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Preformed Packing (Item 158, Appendix F)
Lift, Transmission and Differential
Preformed Packing (Item 160, Appendix F)
(Item 95, Appendix E)
Preformed Packing (Item 183, Appendix F)
Pan, Oil Drain (Item 102, Appendix E)
Retainer Kit, Pitman Arm (Item 233,
Puller Kit, Mechanical (Item 124, Appendix E)
Appendix F)
Sling, Endless Strap (Item 161, Appendix E)
Socket, Sockethead Screw, 3/4 In.
Personnel Required
(Item 168, Appendix E)
Two
Wrench Set, Socket, 3/4 In. Drive (Item 231,
Appendix E)
Wrench, Torque, 0-600 Lb-Ft (Item 233,
Appendix E)
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)
a.
Removal
(1)

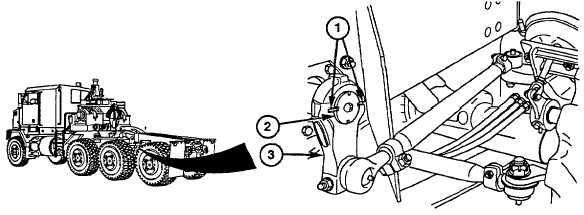

Bend two locktabs (1) toward
outside of retainer (2) on pitman
arm (3).
