13-5. FRONT STEERING GEAR REPLACEMENT (CONT)
(13)

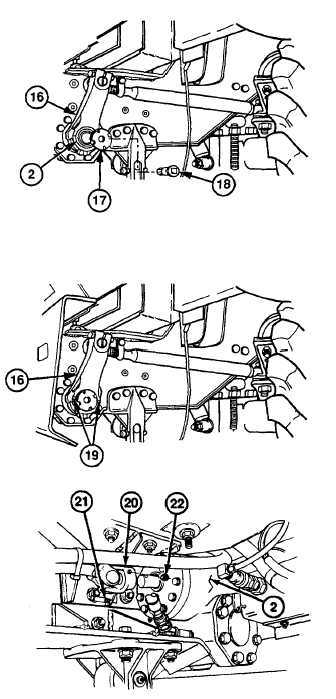

Position pitman arm (16) on steering gear
(2).
(14)
Coat new retainer (17) with antiseize
compound.
(15)
Install retainer (17) on pitman arm (16)
using 3/4 in. sockethead screw socket
(18).
(16)
Tighten retainer (17) to 450 lb-ft (610
Nm).
(17)
Engage locktabs (19) with slots on pitman
arm (16).
(18)
Install yoke (20) on steering gear (2) with
screw (21) and new locknut (22). Torque
to 35-40 lb-ft (47-54 Nm).
c.
Follow-On Maintenance
(1)
Fill steering reservoir (LO 9-2320-360-12).
(2)
Start engine (TM 9-2320-360-10).
(3)
Check steering hose connections for
leaks.
(4)
Shut off engine (TM 9-2320-360-10).
(5)
Install front crosstube (para 14-2).
(6)
Adjust steering system (para 13-8).
