TM 9-2320-360-34-1
13-6. REAR STEERING GEAR REPLACEMENT (CONT)
(2)
Remove retainer (2) from pitman arm (3)
using 3/4 in. sockethead screw socket
(4). Discard retainer.
WARNING
Pitman arm and drag link may fall
during removal. Keep out from under
pitman arm and drag link. Failure to
comply may result in injury to
personnel.
(3)
Remove pitman arm (3) from steering
gear (5) using puller.
(4)
Remove two locknuts (6), screws (7), and
rear service brake relay valve (8) from
crossmember no. 4 (9). Discard locknuts.
(5)

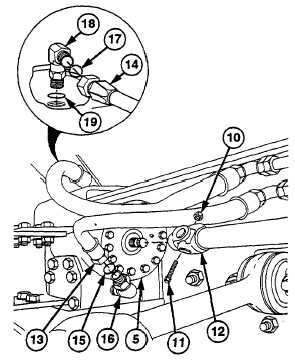

Remove locknut (10), screw (11), and
yoke (12) from steering gear (5). Discard
locknut.
(6)
Place container under hose no. 2276 (13)
and hose no. 2275 (14) to catch draining
fluid.
CAUTION
Steering hoses and elbows should be
covered immediately after removal.
Failure to comply may result in
system contamination
(7)
Remove
hose
no.
2276
(13)
and
preformed packing (15) from adapter (16).
Discard preformed packing.
(8)
Remove
hose
no.
2275
(14)
and
preformed packing (17) from elbow (18).
Discard preformed packing.
(9)
Remove
elbow
(18)
and
preformed
packing (19) from steering gear (5).
Discard preformed packing.
13-16
|
