WARNING
Steering gear weighs 175 lb (79 kg).
Support steering gear when installing
hardware to prevent it from falling.
Failure to comply may result in
injury.
(6)
Position
steering
gear
(2)
on
transmission lift.
NOTE
Steering
gear
mounting
surface
should be clean of paint and all other
foreign material.
(7)
Install steering gear (2) on left front tow
eye (9) with eight new lockwashers (10)
and screws (11). Torque to 180 Ib-ft (244
Nm) torque.
(8)
Remove transmission lift from under
steering gear (2).
(9)

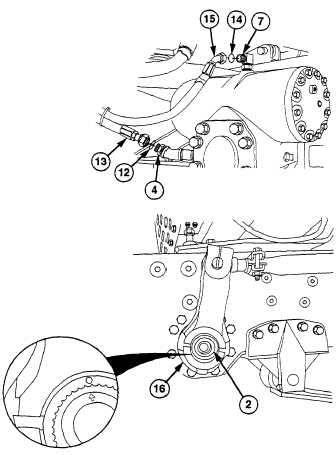

Install new preformed packing (12) and
hose no. 2726 (13) on adapter (4).
(10)
Install new preformed packing (14) and
hose no. 2301 (15) on elbow (7).
(11)
Coat inside surfaces of pitman arm (16)
with antiseize compound.
NOTE
It may be necessary to turn steering
gear input shaft to align timing marks
on steering gear output shaft and
pitman arm.
(12)
Align timing marks on steering gear (2)
and pitman arm (16).
