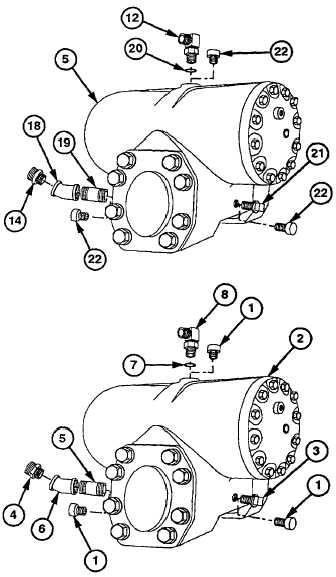

13-5. FRONT STEERING GEAR REPLACEMENT (CONT)
NOTE
For proper assembly, adapter and
elbow positions should be marked
before removal.
(10)
Remove adapter (14), elbow (18), and
pipe (19) from steering gear (5).
(11)
Remove
elbow
(12)
and
preformed
packing (20) from steering gear (5).
Discard preformed packing.
(12)
Remove plug (21) from steering gear (5).
(13)
Install shipping plugs (22) in steering gear
(5).
b.
Installation
(1)
Remove shipping plugs (1) from steering
gear (2).
WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and is harmful to skin and
clothing. To avoid injury or death,
keep away from open fire and use in
well-ventilated area. If pipe thread
sealing compound gets on skin or
clothing, wash immediately with soap
and water.
CAUTION
Use pipe thread sealing compound
sparingly only on pipe threads. Do
not
apply
compound
to
hose
connections. Damage to equipment
may result.
(2)
Coat threads of plug (3), adapter (4), and
pipe
(5)
with
pipe
thread
sealing
compound.
(3)
Install plug (3) on steering gear (2).
(4)
Install pipe (5), elbow (6), and adapter (4)
on steering gear (2).
(5)
Install new preformed packing (7) and
elbow (8) on steering gear (2).
