TM 9-2320-360-34-1
(4)
Remove locknut (6), screw (7) and yoke
(8) from steering gear (5). Discard
locknut.
(5)

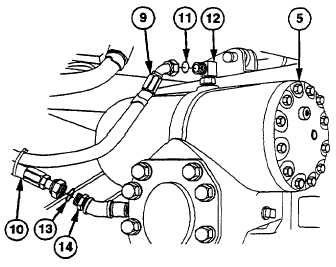

Place drain pan under hose no. 2301 (9)
and hose no. 2726 (10) to catch draining
fluid.
CAUTION
Steering hoses and elbows should be
covered immediately after removal.
Failure to comply will result in
system contamination
(6)
Remove
hose
no.
2301
(9)
and
preformed packing (11) from elbow (12).
Discard preformed packing.
(7)
Remove hose no. 2726 (10) and
preformed packing (13) from adapter (14).
Discard preformed packing.
WARNING
Steering gear weighs 175 lb (79 kg).
Support
steering
gear
when
removing hardware to prevent it from
falling. Failure to comply may result
in injury.
(8)
Position transmission lift under steering
gear (5).
(9)
Remove eight screws (15), lockwashers
(16), and steering gear (5) from left front
tow eye (17). Discard lockwashers.
13-11
|
