13-5. FRONT STEERING GEAR REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Materials/Parts
Steering reservoir drained
Compound, Antiseize (Item 18, Appendix B)
(LO 9-2320-360-12).
Compound, Sealing, Pipe Thread
Front crosstube removed (para 14-2).
(Item 28, Appendix B)
Locknut (Item 80, Appendix F)
Tools and Special Tools
Lockwashers (8) (Item 106, Appendix F)
Tool Kit, Genl Mech (Item 202, Appendix E)
Packing, Preformed (Item 158, Appendix F)
Lift, Transmission and Differential
Packing, Preformed (Item 160, Appendix F)
(Item 95, Appendix E)
Packing, Preformed (Item 183, Appendix F)
Pan, Oil Drain (Item 102, Appendix E)
Retainer Kit, Pitman Arm (Item 233,
Puller Kit, Mechanical (Item 124, Appendix E)
Appendix F)
Socket, Sockethead Screw, 3/4 In. (Item 168,
Appendix E)
Personnel Required
Wrench Set, Socket, 3/4 In. Drive (Item 231,
Two
Appendix E)
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)
Wrench, Torque, 0-600 Lb-Ft (Item 233,
Appendix E)
a.
Removal

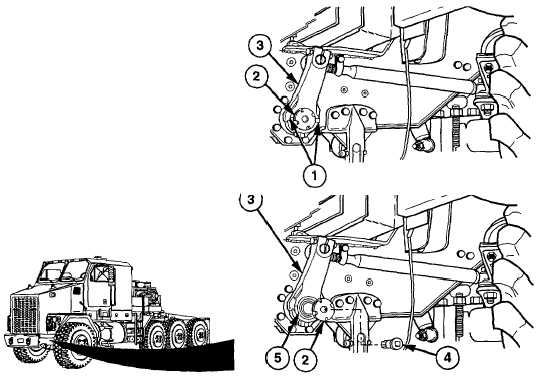

(1)
Bend two locktabs (1) toward outside of
retainer (2) on pitman arm (3).
(2)
Remove retainer (2) from pitman arm (3)
using 3/4 in. sockethead screw socket
(4). Discard retainer.
WARNING
Pitman arm and drag link may fall
during removal. Keep out from under
pitman arm and drag link. Failure to
comply may result in injury to
personnel.
(3)
Remove pitman arm (3) from steering
gear (5) using puller.
