13-4. PITMAN ARMS REPLACEMENT
This task covers:
Removal
Installation
Cleaning/Inspection
Follow-On Maintenance
INITIAL SETUP
Equipment Conditions
Tools and Special Tools (Cont)
Engine shut off (TM 9-2320-360-10).
Wrench, Torque, 0-600 Lb-Ft (Item 233,
Parking brake on (TM 9-2320-360-10).
Appendix E)
Wheels chocked.
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
Materials/Parts
Compressor Unit, Air (Item 24, Appendix E)
Compound, Antiseize (Item 18, Appendix B)
Goggles, Industrial (Item 57, Appendix E)
Lockwashers (2) (Item 106, Appendix F)
Puller Kit, Mechanical (Item 124, Appendix E)
Retainer Kit, Pitman Arm (2) (Item 233,
Socket, Sockethead Screw, 3/4 In. Drive
Appendix F)
(Item 168, Appendix E)
Wrench Set, Socket, 3/4 In. Drive (Item 231,
(Item 231, Appendix E)
a.
Rear Pitman Arm Removal

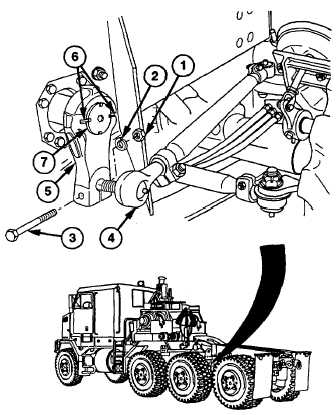

(1)
Remove nut (1), lockwasher (2), and
screw (3) from drag link (4) and pitman
arm (5). Discard lockwasher.
NOTE
It may be necessary to raise rear axle
to release pressure on drag link.
(2)
Remove drag link (4) from pitman arm (5)
(3)
Bend two locktabs (6) toward outside of
retainer (7) on pitman arm (5)
