TM 9-2320-360-34-1
b.
Installation
WARNING
Support drag link during installation
to prevent it from falling. Failure to
comply may result in injury.
NOTE
Slot in drag link must align with slot
in pitman arm.
(1)

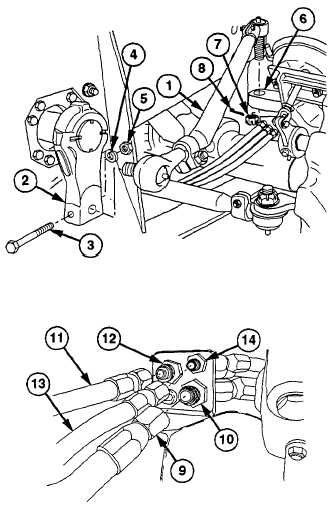

Position front of drag link (1) in pitman arm
(2).
(2)
Secure pitman arm (2) to drag link (1) with
screw (3), new lockwasher (4), and nut
(5). Torque to 90 lb-ft (122 Nm).
(3)
Insert rear of drag link (1) in steering arm
(6).
(4)
Install nut (7) on drag link (1). Torque to
165 lb-ft (224 Nm). Continue to tighten
until slot in nut (7) is aligned with hole in
drag link.
(5)
Install new cotter pin (8) through nut (7)
and drag link (1).
(6)
Install hose no. 2873 (9) on fitting (10).
(7)
Install hose no. 2016(11) on fitting (12).
(8)
Install hose no. 2141 (13) on fitting (14).
c.
Follow-On Maintenance
(1)
Lubricate drag link (LO 9-2320-360-12).
(2)
Adjust steering system (para 13-8).
(3)
Start engine (TM 9-2320-360-10).
(4)
Road test vehicle to check for proper operation of steering.
(5)
Shut off engine (TM 9-2320-360-10).
13-5
|
