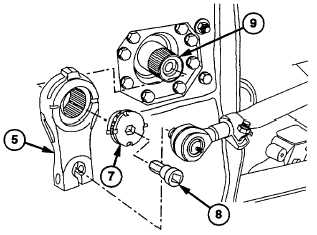

Remove retainer (7) from pitman arm (5)
using 3/4 in. sockethead screw socket
(8). Discard retainer.
WARNING
Pitman arm may fall during removal
In step (5). To prevent injury, keep
out from under pitman arm.
(5)
Remove pitman arm (5) from steering
gear (9) using puller.
b.
Front Pitman Arm Removal

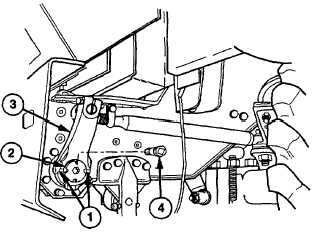

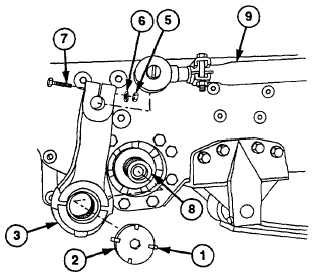

(1)
Bend two locktabs (1) toward outside of
retainer (2) on pitman arm (3).
(2)
Remove retainer (2) from pitman arm (3)
using 3/4 in. sockethead screw socket (4).
Discard retainer.
(3)
Remove nut (5), lockwasher (6), and
screw (7) from pitman arm (3). Discard
lockwasher.
WARNING
Pitman arm and drag link may fall
during removal in step (4). To
prevent injury, keep out from under
pitman arm and drag link.
(4)
Remove pitman arm (3) from steering
gear (8) using puller.
(5)
Remove pitman arm (3) from drag link (9).
