TM 9-2320-360-34-1
13-3. REAR DRAG LINK REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Tools and Special Tools (Cont)
Engine shut off (TM 9-2320-360-10).
Wrench Set, Socket, 3/4 In. Drive (Item 231,
Parking brake on (TM 9-2320-360-10).
Appendix E)
Wheels chocked.
Wrench, Torque, 0-175 Lb-Ft (Item 236,
Appendix E)
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
Materials/Parts
Jack Kit, Hydraulic Hand (Item 92, Appendix E)
Lockwasher (Item 106, Appendix F)
Pin, Cotter (Item 219, Appendix F)
a.
Removal
WARNING
Drag link must be supported after
hardware to prevent it from falling.
Failure to comply may result in
injury.
(1)

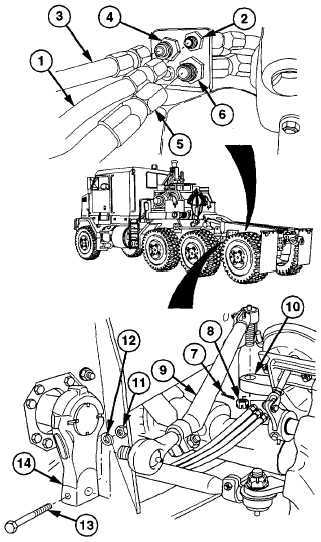

Remove hose no. 2141 (1) from fitting (2).
(2)
Remove hose no. 2016 (3) from fitting (4).
(3)
Remove hose no. 2873 (5) from fitting (6).
(4)
Remove cotter pin (7) from nut (8).
Discard cotter pin.
(5)
Remove nut (8) from drag link (9).
(6)
Remove rear end of drag link (9) from axle
steering arm (10) using hydraulic hand
jack.
(7)
Remove nut (11), lockwasher (12), and
screw (13) from pitman arm (14). Discard
lockwasher.
(8)
Remove drag link (9) from pitman arm (14).
13-4
|
