WARNING
Adhesive-sealant can burn easily,
can give off harmful vapors, and is
harmful to skin and clothing. To
avoid
injury
or
death,
keep
compound away from open fire and
use in well-ventilated area. If
adhesive-sealant gets on skin or
clothing, wash immediately with soap
and water.
(10)

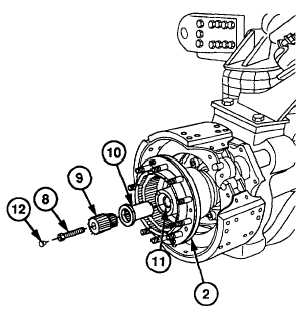

Coat threads of screw (8) with adhesive-
sealant.
(11)
Install screw (8), sun gear (9) and collar
(10), on axle shaft (11). Torque to 135-
165 Ib-ft (183-224 Nm).
(12)
Coat end thrust (12) with grease.
(13)
Install end thrust (12) on sun gear (9).
WARNING
On direct contact, uncured silicone
sealant irritates eyes. In case of
contact, flush eyes with water and
seek medical attention. In case of
skin contact, wipe off and flush with
water.
(14)
Coat mating surfaces of hub assembly (2)
and planetary assembly (13) with silicone
adhesive-sealant.
(15)
Install studs (14) on hub assembly (2).
Torque to 22 lb-ft (30 Nm).

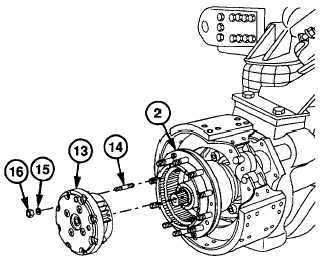

(16)
Install planetary assembly (13) on studs
(14) and hub assembly (2).
(17)
Coat threads of eight studs (14) with
adhesive-sealant.
(18)
Install
eight
washers
(15)
and
new
locknuts
(16)
on
hub
assembly
(2).
Torque to 38-45 lb-ft (52-61 Nm).
