TM 9-2320-360-34-1
12-3. PLANETARY AND HUB REPAIR (CONT)
WARNING
On direct contact, uncured silicone
sealant irritates eyes. In case of
contact, flush eyes with water and
seek medical attention. In case of
skin contact, wipe off and flush with
water.
(19)

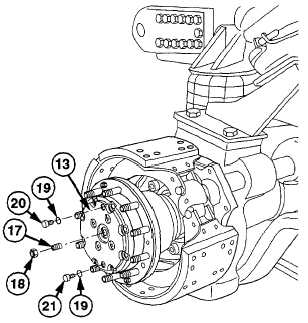

Coat threads of plug (17) with silicone
adhesive-sealant.
(20)
Install plug (17) until seated on planetary
assembly (13), then back out one full turn.
(21)
Install nut (18) on plug (17). Tighten to 80
lb-ft (108 Nm).
(22)
Install two new preformed packings (19)
on plugs (20 and 21).
(23)
Install plugs (20 and 21) in planetary
assembly (13). Torque plugs to 40 lb-ft
(54 Nm).
f.
Follow-On Maintenance
(1)
Install brake drum (TM 9-2320-360-20).
(2)
Fill wheel end (LO 9-2320-360-12).
12-12
|
