12-3. PLANETARY AND HUB REPAIR (CONT)
e.
Installation
CAUTION
· Use guide sleeve to prevent damage
to CTI seal cartridge.
· Do not allow grease or oil to remain
on spindle or CTI seal cartridge. CTI
seal cartridge uses Teflon-coated
seals. Failure to comply may result
in damage to Teflon coating.

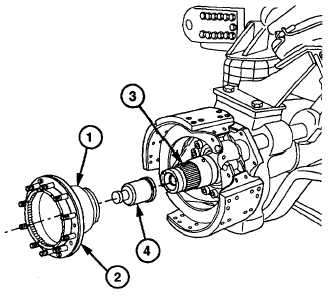

(1)
Wipe clean seals (1) in wheel hub
assembly (2) and splines on spindle
assembly (3).
(2)
Install guide sleeve (4) over splines of
spindle assembly (3).
(3)
Install hub assembly (2) on spindle
assembly (3) with aid of assistant.
(4)
Remove guide sleeve (4) from spindle
assembly (3).
