NOTE
Spring side of inner seal faces inside
of hub.
(6)

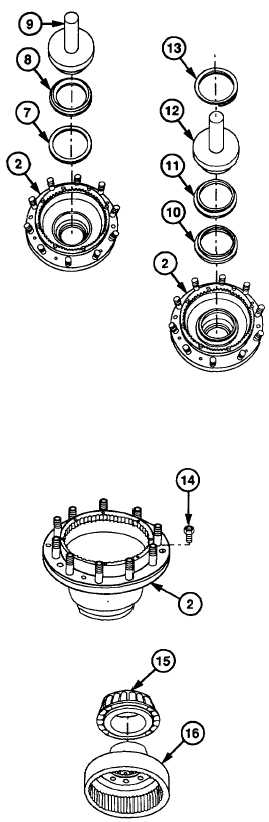

Install new guide ring (7) and new inner
seal
(8)
in hub (2) using seal driver (9).
(7)
Install new outside seal (10) and outside
ring (11) in hub (2) using seal driver (12).
WARNING
Wear eye protection and use care
when removing snap rings. Snap
rings are under spring tension and
can act as projectiles when released
causing severe eye injury.
(8)
Install new snap ring (13) in hub (2).
WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and is harmful to skin and
clothing. To avoid injury or death,
keep compound away from open fire
and use in well-ventilated area. If
pipe thread sealing compound gets
on
skin
or
clothing,
wash
immediately with soap and water.
(9)
Coat threads of two fittings (14) with pipe
thread sealing compound.
(10)
Install two fittings (14) in hub (2).
NOTE
Do step (11) only if taper bearing was
removed.
(11)
Install taper bearing (15) on ring gear
assembly (16).
(12)
Pack taper bearing (15) with grease.
