12-3. PLANETARY AND HUB REPAIR (CONT)
(16)

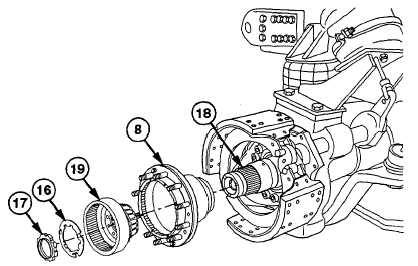

Bend tabs on lockwasher (16) up and
away from spindle nut (17).
(17)
Remove spindle nut (17) and lockwasher
(16) from spindle assembly (18) with
spanner socket. Discard lockwasher.
(18)
Remove ring gear assembly (19) from
wheel hub (8) while assistant lifts wheel
hub assembly.
(19)
Remove hub (8) from spindle assembly
(18) with aid of assistant.
b.
Disassembly
NOTE
Do step (1) only if taper bearing fails
inspection.

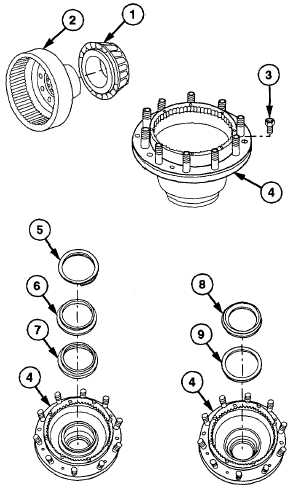

(1)
Remove taper bearing (1) from ring gear
assembly (2).
(2)
Remove two fittings (3) from hub (4).
WARNING
Wear eye protection and use care
when removing snap rings. Snap
rings are under spring tension and
can act as projectiles when released
causing severe eye injury.
(3)
Remove snap ring (5) from hub (4).
Discard snap ring.
(4)
Remove outside ring (6) and outside seal
(7) from hub (4). Discard ring and seal.
(5)
Remove inner seal (8) and guide ring (9)
from hub (4). Discard seal and ring.
