TM 9-2320-360-34-1
(7)

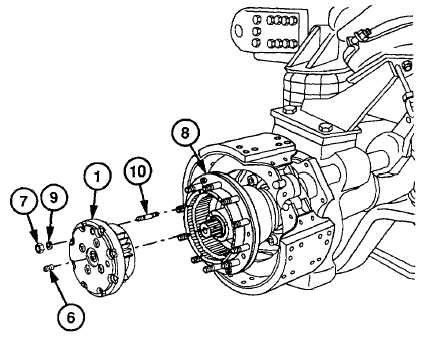

Loosen one of eight locknuts (7) from
wheel hub (8).
(8)
Remove remaining seven locknuts (7) and
washers (9) from wheel hub (8). Discard
locknuts.
(9)
Separate planetary assembly (1) from
wheel hub (8) by tightening plug (6).
(10)
Remove remaining locknut (7), washer
(9), and planetary assembly (1) from
wheel
hub
(8)
while
assistant
lifts
planetary assembly. Discard locknut.
(11)
Remove plug (6) from planetary
assembly (1).
NOTE
Do step (12) only if studs fail
inspection.
(12)
Remove eight studs (10) from wheel hub
(8).
(13)

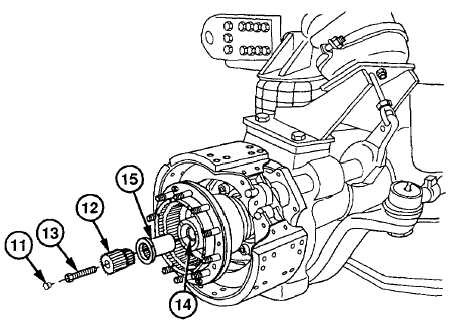

Remove end thrust (11) from sun gear
(12).
(14)
Remove screw (13) from axle shaft (14).
(15)
Remove sun gear (12) and collar (15)
from axle shaft (14).
12-5
|
