TM 9-2320-360-34-1
(6)

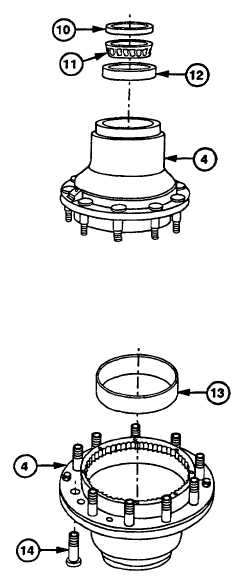

Remove seal (10) and taper bearing (11)
from hub (4).
NOTE
Do steps (7) and (8) only if bearing
races fail inspection.
(7)
Remove bearing race (12) from hub (4).
(8)
Remove bearing race (13) from hub (4).
NOTE
· Do step (9) only if studs fail
inspection.
· Four studs are longer than the other
six to retain wheel cover. Mark
locations of these studs for proper
assembly.
(9)
Remove stud(s) (14) from hub (4).
c.
Cleaning/Inspection
(1)
Clean old gasket material from housing and/or caps.
WARNING
Dry cleaning solvent P-D-680 is toxic and flammable. Wear protective goggles and
gloves and use only in well-ventilated area. Avoid contact with skin, eyes, and
clothing, and don't breathe vapors. DO NOT use near open flame or excessive
heat. The flash point is 100-138° F (38-59° C). If you become dizzy while using
cleaning solvent, get fresh air immediately and medical aid. If contact with eyes is
made, wash your eyes with water and get medical aid immediately.
(2)
Clean sealant residue from threaded holes with dry cleaning solvent.
(3)
Wash all metal parts in dry cleaning solvent.
Change 1 12-7
|
