11-6. AIR COMPRESSOR REPLACEMENT (CONT)
(9)

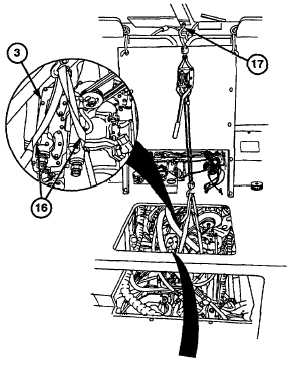

Install two lifting straps (16) and suitable
lifting device on compressor (3) and eye
bolt (17).
(10)
Install drive coupling (18) in engine (15).
WARNING
Sealing compound can bum easily,
can give off harmful vapors, and are
harmful to skin and clothing. To
avoid injury or death, keep away from
open fire and use in well-ventilated
area. If sealing compound gets on
skin or clothing, wash immediately
with soap and water.
NOTE
· Air compressor and mating surfaces
on engine must be clean.
· Rubber seal on gasket faces away
from engine.
(10.1)
Apply sealing compound to engine side of
new gasket (19).
(11)
Position gasket (19) and compressor (3)
on guide screws (14) with aid of assistant.
CAUTION
Compressor drive hub must be mated
with engine drive plate. If hub does
not
align,
rotate
crankshaft
by
turning nut in center of pulley on
front of left camshaft clockwise.
Failure to comply may result in
damage to equipment.

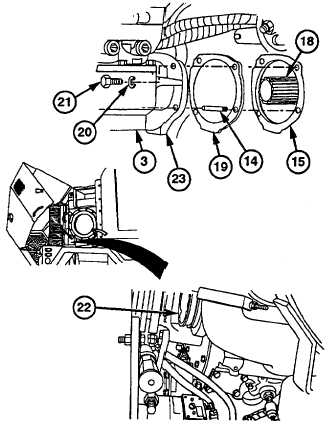

(12)
Install new gasket (19) and compressor
(3)
on
engine
(15)
with
two
new
lockwashers (20) and screws (21) while
assistant uses camshaft pulley (22) to bar
over engine.
(13)
Remove two guide screws (14) and install
two new lockwashers (20) and screws
(21)
in
lower
holes
of
compressor
mounting flange (23).
(14)
Remove
two
lifting
straps
(16)
and
suitable lifting device from compressor (3)
and eye bolt (17).
(15)
Tighten four screws (21) to 80 lb-ft
(108 Nm).
