Installation
(1)

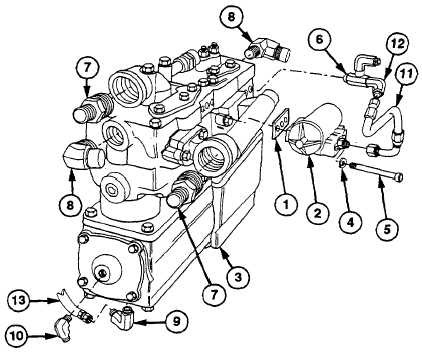

Install new gasket (1) and governor (2) on air compressor (3) with two new lockwashers (4) and screws (5).
WARNING
Pipe thread sealing compound can burn easily, can give off harmful vapors, and is
harmful to skin and clothing. To avoid injury or death, keep away from open fire
and use in well-ventilated area. If pipe thread sealing compound gets on skin or
clothing, wash immediately with soap and water.
CAUTION
Use pipe thread sealing compound sparingly only on pipe threads. Do not apply
compound at hose connections. Damage to equipment may result.
(2)
Coat threads of tee (6), two adapters (7),
and two elbows (8), elbow (9), and elbow
(10) with pipe thread sealing compound.
(3)
Install two adapters (7) and three elbows
(8 and 9) on air compressor (3).
(4)
Install elbow (10) on compressor (3).
(5)
Install tee (6) on air compressor (3).
(6)
Install hose no. 2114 (11) on elbow
(12) and governor (2).
(7)
Install oil line no. 2630 (13) on elbow
(9) on air compressor (3).
(8)

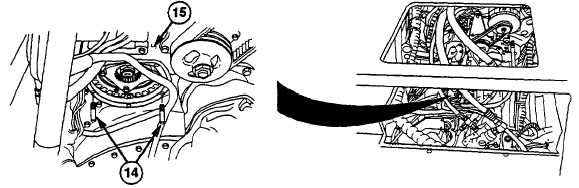

Install two guide screws (14) in lower holes
of engine (15).
